SMARTZONE CONTROLS
Check out the newest version here:
https://zoningsupply.com/buy/smartzone-2
4-Zone Controller
NEW for 2025 - SmartZone better than ever
Replace almost any brand existing zone control ... use with any thermostats (including WiFi).
Control heating and cooling comfort room by room.
EASY INSTALLATION - no screwdriver or voltmeter required
UNIVERSAL COMPATIBILITY - drop in replacement for many models (see list in Additional Info)
BEST FEATURES - built in Fresh Air Control, expansion port up to 20 Zones
SUPPLY AIR TEMP SENSOR - included for Smart-Staging & equipment protection
DESIGNED & ASSEMBLED IN THE USA
HVAC Zone control system up to 8 Zones.
Includes two (2) SmartZone-4X 3.0 boards that can be used together for up to 8 Zone systems. Simple 3-wire SmartLINK connection.
SMARTZONE DAMPERS
4", 5", 6", 7", 8", 9", 10", 12", 14", 16", 18" Available
FEATURES:
Industry-leading quality & highest reliability, Belimo Motor, Full-seal gasket blade, Super-Heavy Duty, Ribs for easy flex duct attachment, One crimped end for easy solid duct attachment, 5 Year replacement warranty.
Now available with or without a motor (Select below)
NOTE: All dampers subject to a 10% restocking fee.
Integrated starting-collar flange & adhesive gasket make install easier than any other damper, industry-leading quality & highest reliability, Belimo Motor, Full-seal gasket blade, Super-Heavy Duty, Ribs for easy flex duct attachment, One crimped end for easy solid duct attachment, 5 Year replacement warranty.
Industry-leading quality & highest reliability, Belimo Motor, Full-seal gasket blade, makes mounting in any round duct easy with these super-heavy duty retro-fit slip-in dampers
4", 5", 6", 7", 8", 9", 10" ROUND Diameter Dampers
12”, 14” & 16” Diameter insert dampers require additional hole to be drilled in duct opposite damper. (grommet included to insert shaft)
6" X 6" thru 24" X 24"
SUPER Heavy-Duty
Aluminum rectangular damper w/ Ecojay by Belimo motor
Built to stand up to use and abuse
ATTENTION:
Due to delays receiving raw materials, the shipping time on these custom rectangular dampers has been extended: UP TO 3 or 4 WEEKS
We are very sorry about this delay and will be back to normal shipping times very soon! Please call us if you have any questions or concerns about your order.
DELIVERY TIME: UP TO 3 Weeks
(because they are custom made to order)
RETURNS for rectangular dampers require 20% restocking fee because they are custom made to order... please be sure you order the correct size.
NOTE: The motor will always be mounted on the “HEIGHT” side
BYPASS DAMPER & PRESSURE RELIEF
Round gasket-ed blade, weight-arm style pressure relief (Bypass) damper.
NOTE: All dampers subject to a 10% restocking fee.
Includes:
(1) Power Zone Damper
(1) Static Air Pressure Switch
Combined, these can be used as the most effective and reliable means of air pressure relief or bypass for any zoning system.
NOTE: All dampers subject to a 10% restocking fee.
Static Pressure Controlled Bypass Switch
Use with ANY 3-wire (Power Open/Close) Damper - Sold Separately:
Click here for 3-wire Power Damper
Automatically controls damper for accurate and quiet pressure relief necessary in most zone control applications.
Automatically “leak” airflow into non-calling zones.
The ECOJAY SmartStaticTM accessory panel is used in conjunction with the ECOJAY Static Pressure Sensor (ASPC-3) to open zone dampers for zones that are not calling for the same mode just enough to reduce the pressure in the ducts to an acceptable level.
This can, in some situations, allow for the elimination of a bypass damper or other pressure relief methods.
NOTE: ASPC-3 is needed for SmartStatic to automatically operate. If you do not already have one, please select “WITH ASPC-3”
THERMOSTATS
What pairs perfectly with SmartZone?
Vine WiFi thermostats! Take zoning to the next level with these beautiful and extremely reliable thermostats!
The Outdoor Air Thermostat uses an outdoor temperature sensor to control the “Fresh Air” option built into the SmartZone-4X. Every SmartZone-4X has a built-in “Fresh Air Control” option that can be enabled…[Click to learn more about this feature]
The Outdoor Air Thermostat allows you to set HIGH and LOW outdoor temperatures. Above the HIGH or below the LOW fresh-air intake will not run. In other words, you can tell the SmartZone-4X that you do not want fresh air to run when it is too HOT and/or too COLD outside.
Also, the Outdoor Air Thermostat gives you the ability to “demand” fresh air temporarily (in 5 minute increments)… AND, disable (pause) the automatic fresh air from running using the Outdoor Air Thermostat.
PLUS NOW the Outdoor Air Thermostat can be used to enable the ECONOMIZER (Free Cooling) feature on the SmartZone-4X board. In the past, we have used an Enthalpy Sensor to enable or disable the ECONOMIZER feature of SmartZone-4X but the cost and reliability of these types of humidity and temperature sensors can be prohibitive. The Outdoor Air Thermostat can be and affordable and effective way to utilize ECONOMIZER mode on the SmartZone-4X.
ACCESSORIES & OTHER PARTS
24V Transformer - XL Capacity - 50 VA (2 Amp)
110 Volt Wall plug style - 24 Volt A/C Output
Green LED indicator
Built-In auto resetting fuse
10K Type III Thermistor with stainless steel probe, wire lead & quick connector for use with ALL SmartZone products from 2004 thru present.
Included with SmartZone-2X, SmartZone-2L, SmartZone-3X & SmartZone-4X & Fresh Air Thermostat.
LED screwless wiring terminal for APDM damper motor that includes color LEDs to indicate open and close position.
GREEN = OPEN
RED = CLOSED
Available in 2- Pack and 4- Pack
$12.99 for 2
$19.99 for 4
Easy mounting & wiring with included base socket
24VAC Coil
10A Contacts (up to 277VAC)
Red LED indicator shows relay coil "energized"
DIN Rail & screw-hole mountable
Wall-Mounted on/off switch for ECO Mode on all SmartZone controllers.
Simple way to get more energy savings from SmartZone. Use this switch to enable ECO Mode easily. ECO Mode puts the entire zone control system in a "setback or away" state by disabling equipment control for all zones except ZONE 1. Dampers will still open and close as needed but ONLY ZONE 1 will be able to energize heat or cooling.

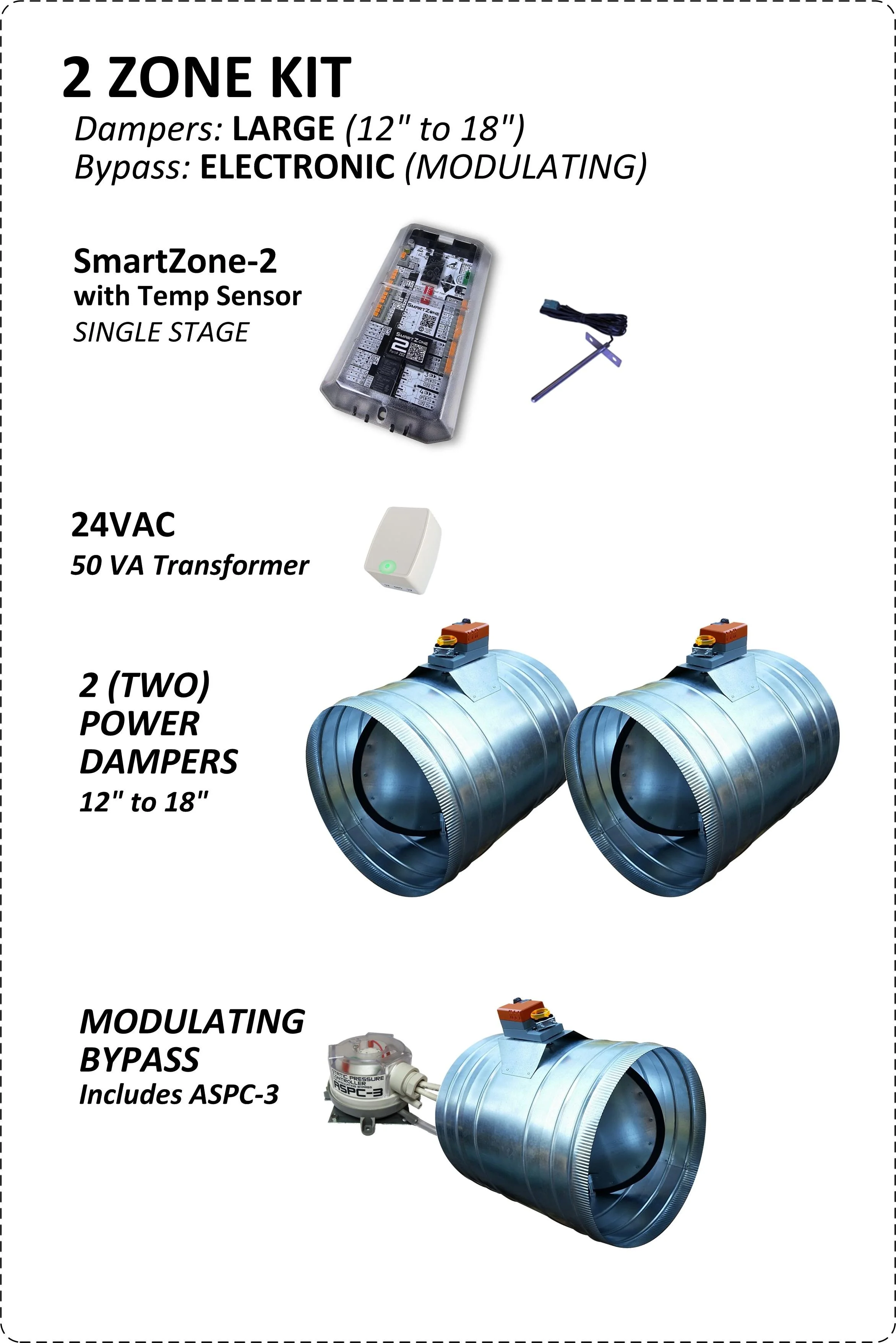

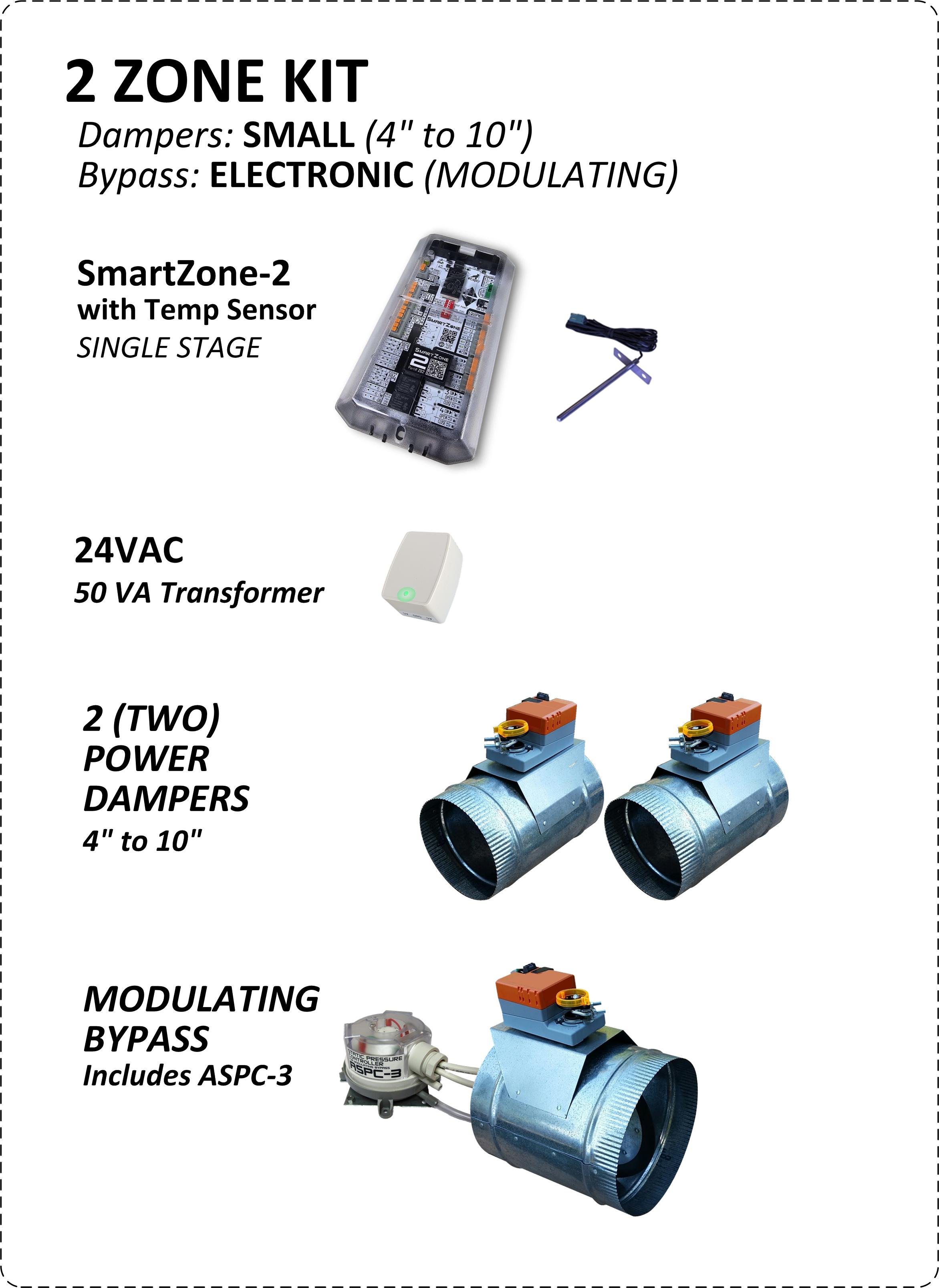

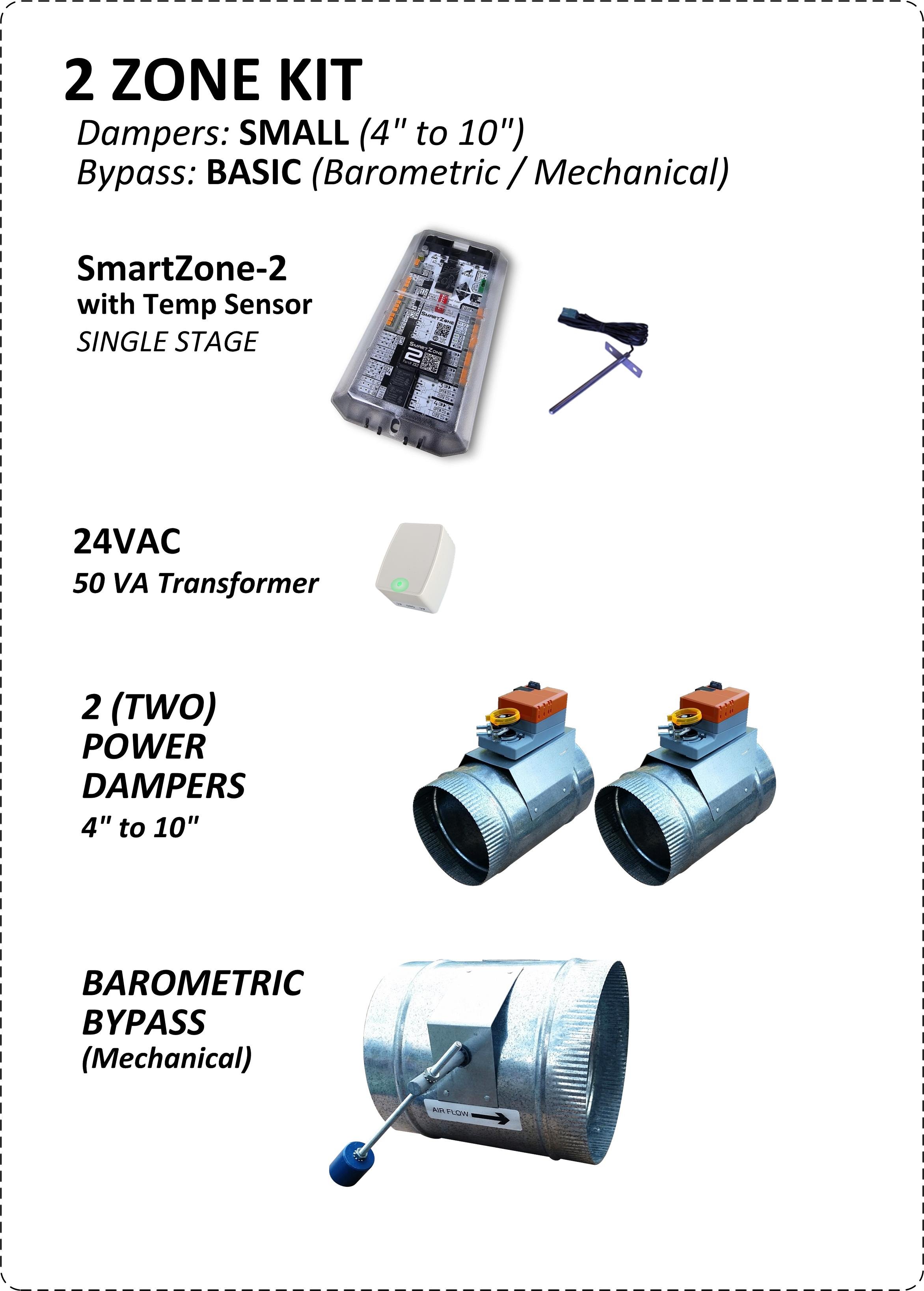

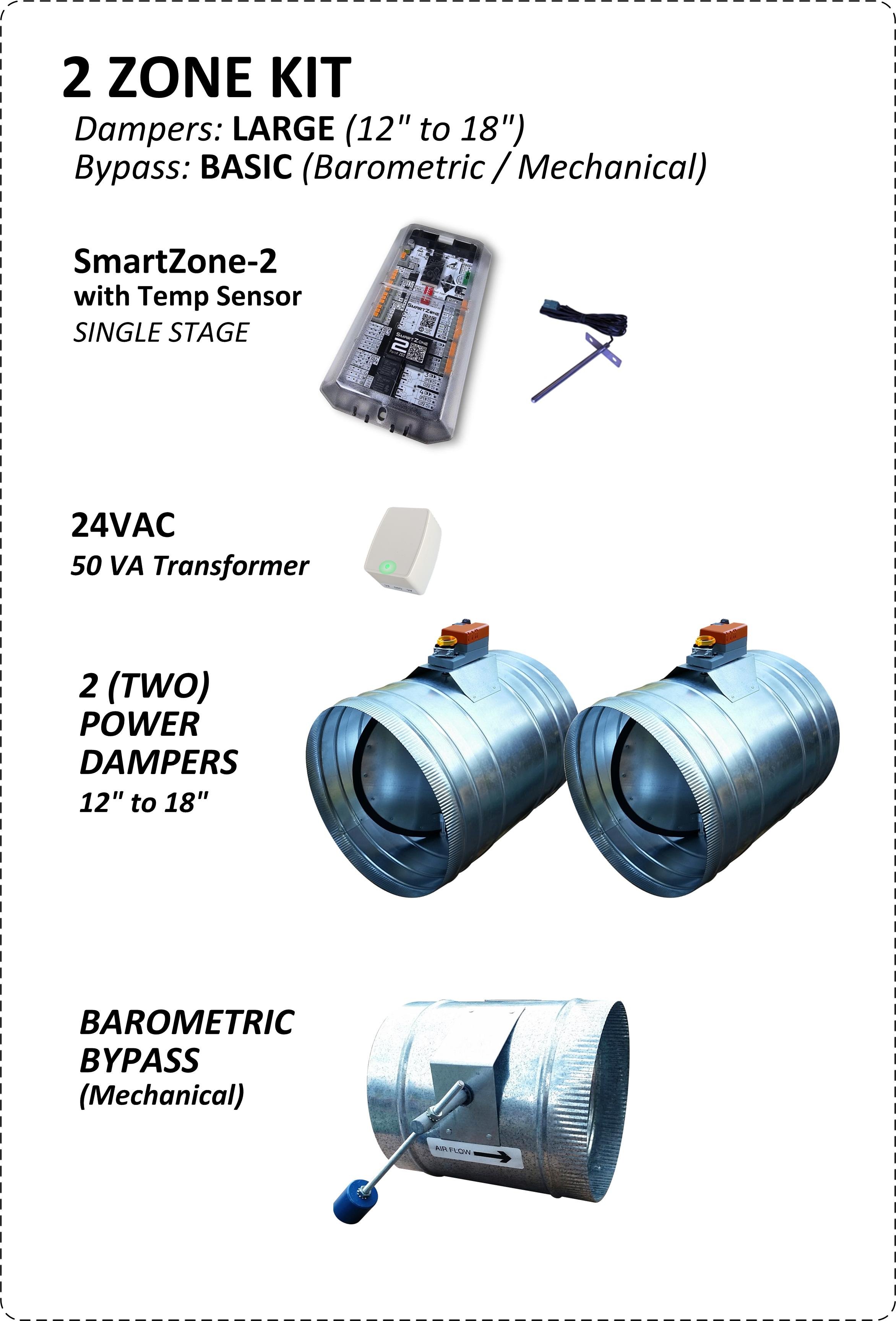

SMARTZONE KITs
INCLUDED:
Zone Controller (SmartZone)
Pro-Grade Round Zone Supply Dampers*
Bypass Damper (Round)
50VA 24VAC Power Transformer
* Select each size when "Adding to Cart"
