Air Pressure Switch (Bypass Control)

$74.99
SQUARE - ecojay static pressure switch ASPC3.jpg
ecojay smartzone ASPC3 whats in box.jpg
ecojay smartzone ASPC3-2.jpg
smartzone damper static pressure drawing.png
static pressure controller aspc2.png
ecojay smartzone ASPC3-3.jpg

Air Pressure Switch (Bypass Control)

$74.99

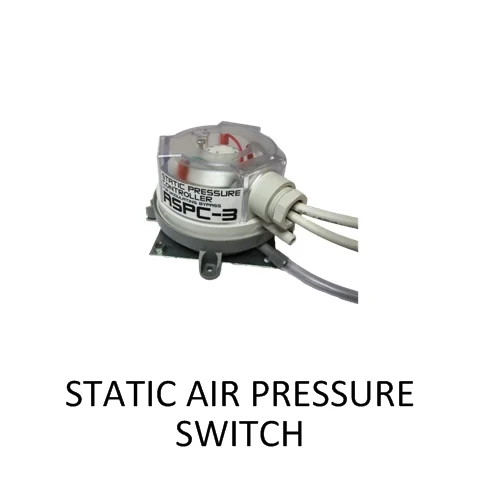

Static Pressure Controlled Bypass Switch
Use with ANY 3-wire (Power Open/Close) Damper - Sold Separately:
Click here for 3-wire Power Damper

Automatically controls damper for accurate and quiet pressure relief necessary in most zone control applications.

More Info

Quantity:
Add To Cart

Static Pressure Controlled Bypass Switch
Use with ANY 3-wire (Power Open/Close) Damper - Sold Separately:
Click here for 3-wire Power Damper

Automatically controls damper for accurate and quiet pressure relief necessary in most zone control applications.

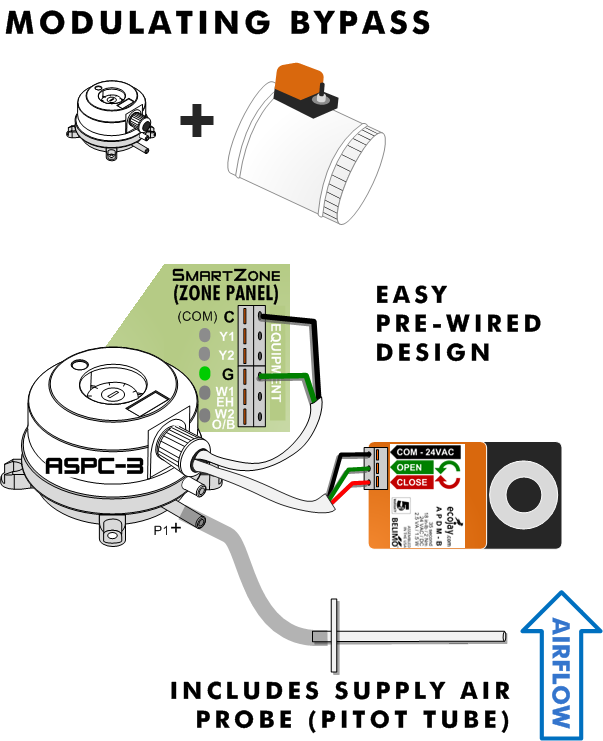

STATIC PRESSURE CONTROL - MODULATING Bypass / Pressure Relief Damper

You will also need a 3-wire damper (Power Open/Close Damper) to be controlled by the STATIC PRESSURE SWITCH.

PRESSURE SWITCH SPECS:

SETPOINT RANGE: 0.08" - 0.8" W.C. (20 - 200 pa)
SWITCHING DIFF: 0.02" W.C. (5pa)
MAX PRESSURE: 10Kpa
OPERATING TEMP: 0 to 145 deg. F
ELECTRICAL CONTACT RATING:  1.0A
PRESSURE CONNECTION TUBING: 1/4" I.D. - 6 ft included

Click above for ECOJAY (Static Pressure Control) Modulating Bypass Specification & Install (Opens a new window)
