SmartZone 3.0 Install Guide
Full color install guide included with every SmartZone board.

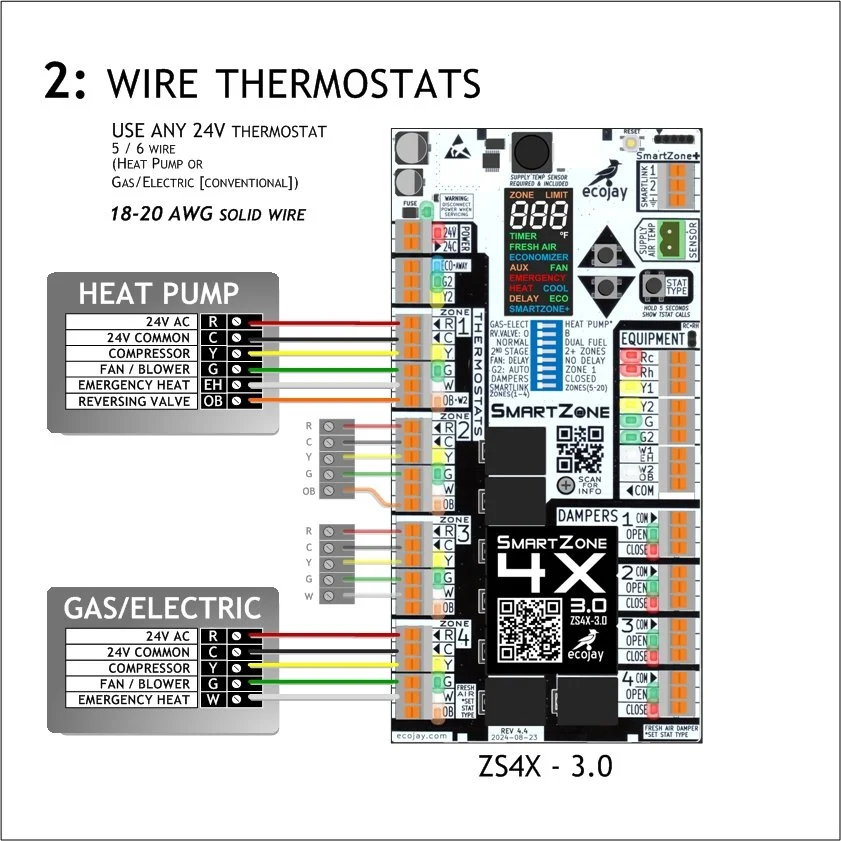

Follow the steps below to install SmartZone.

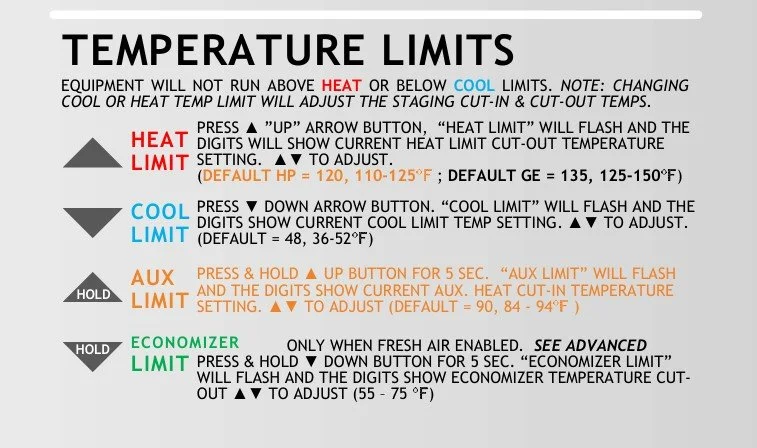

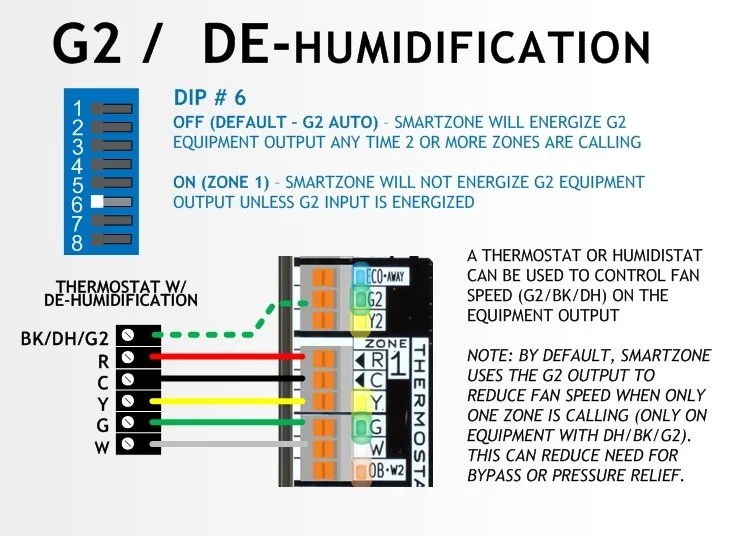

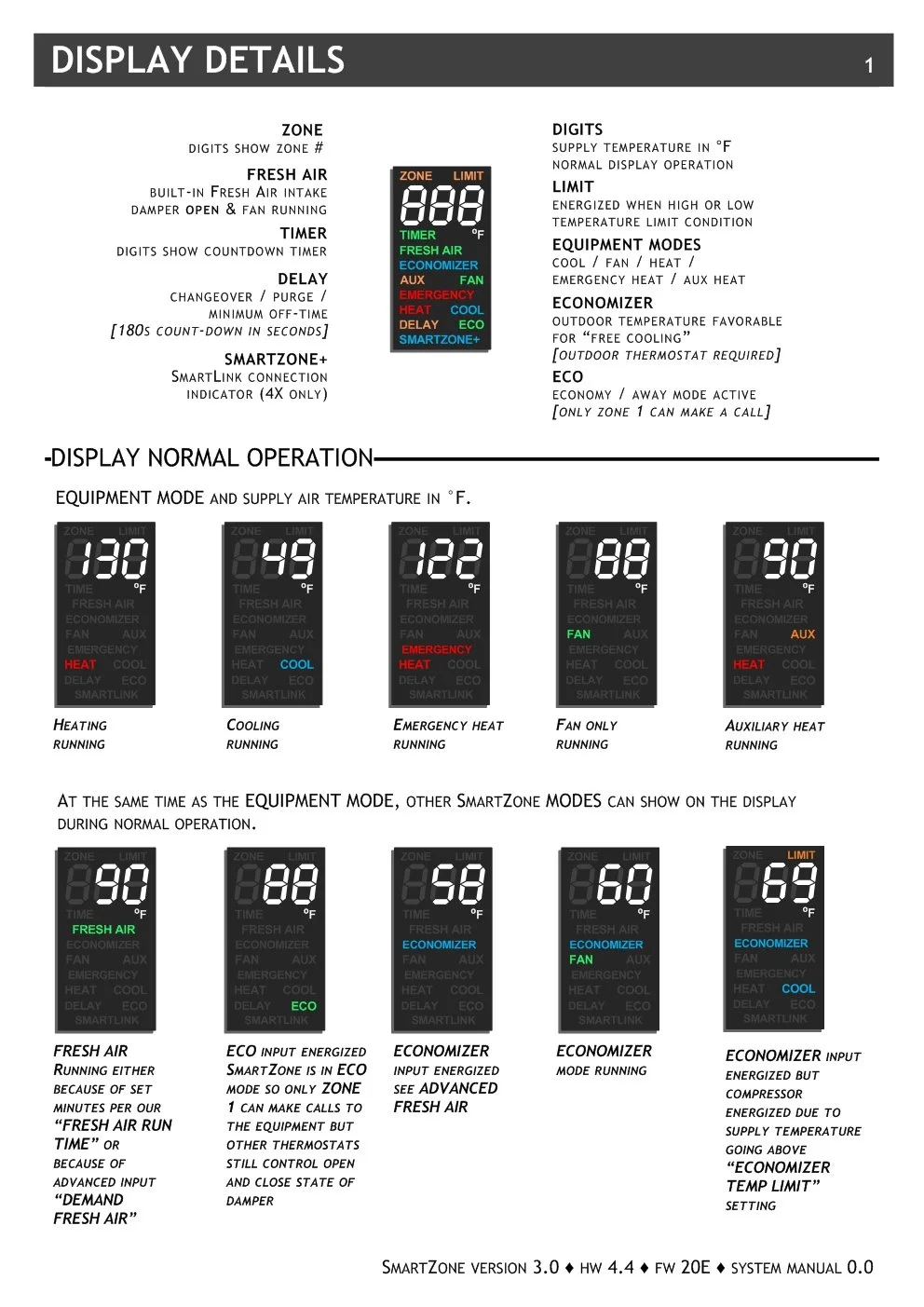

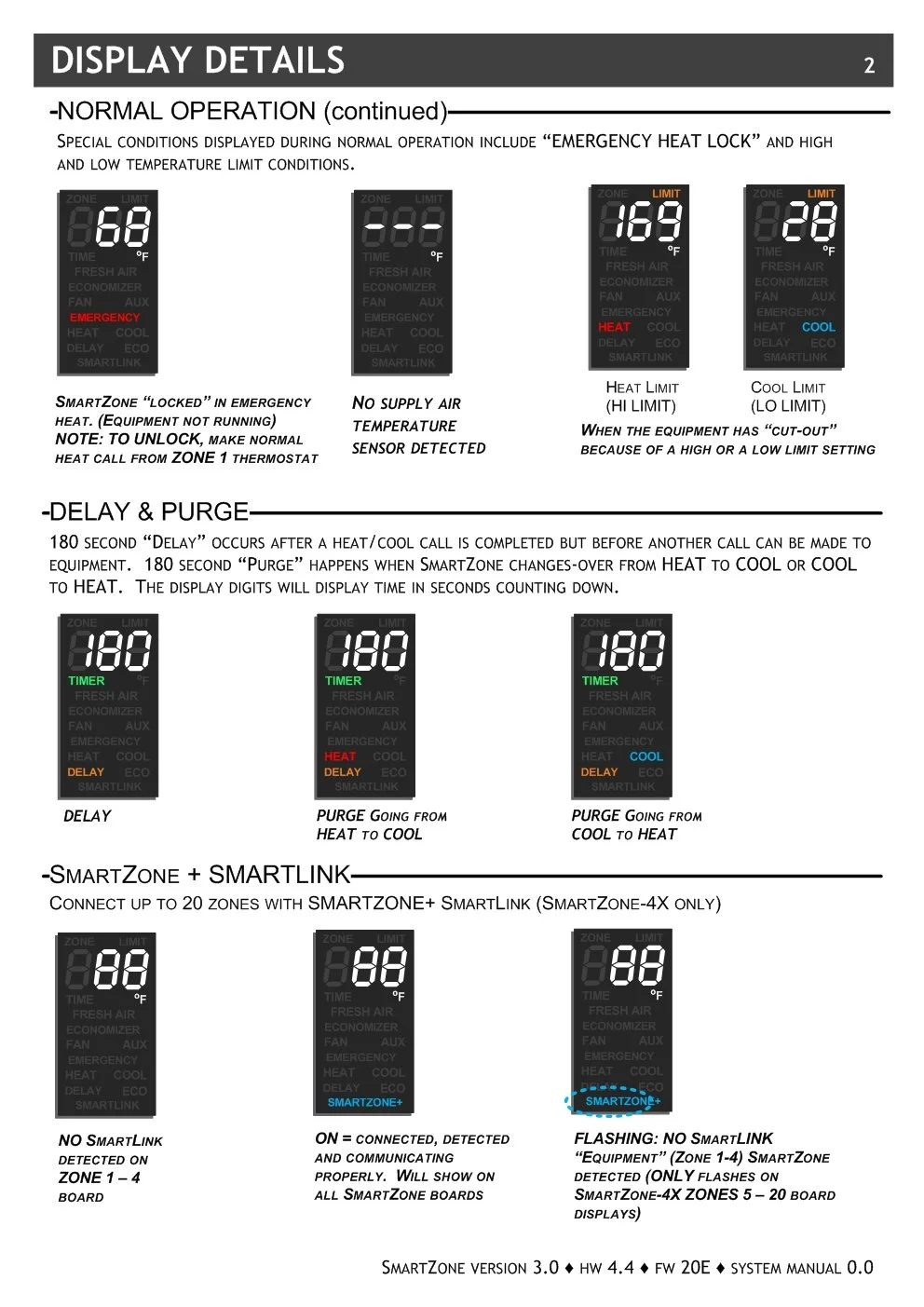

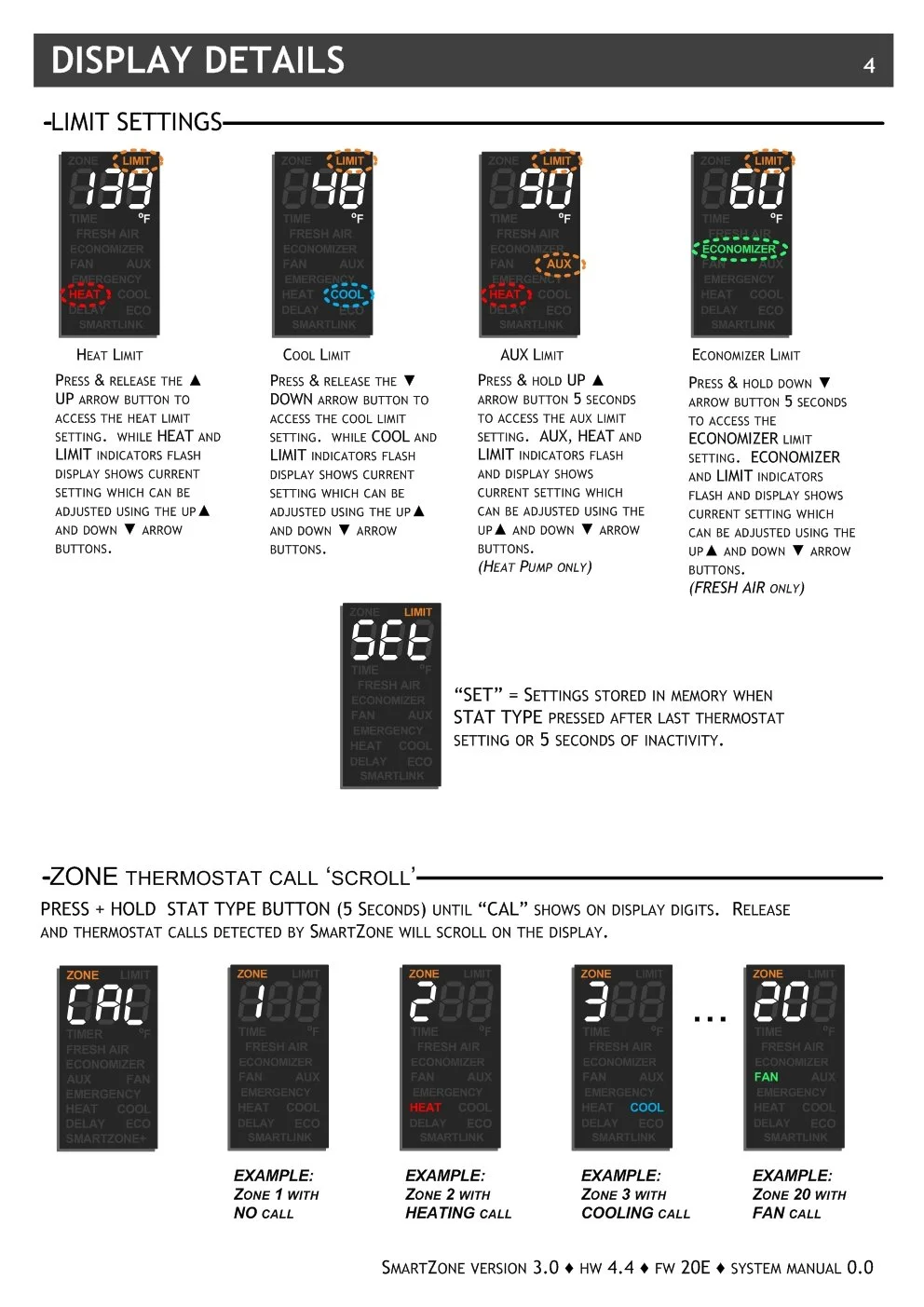

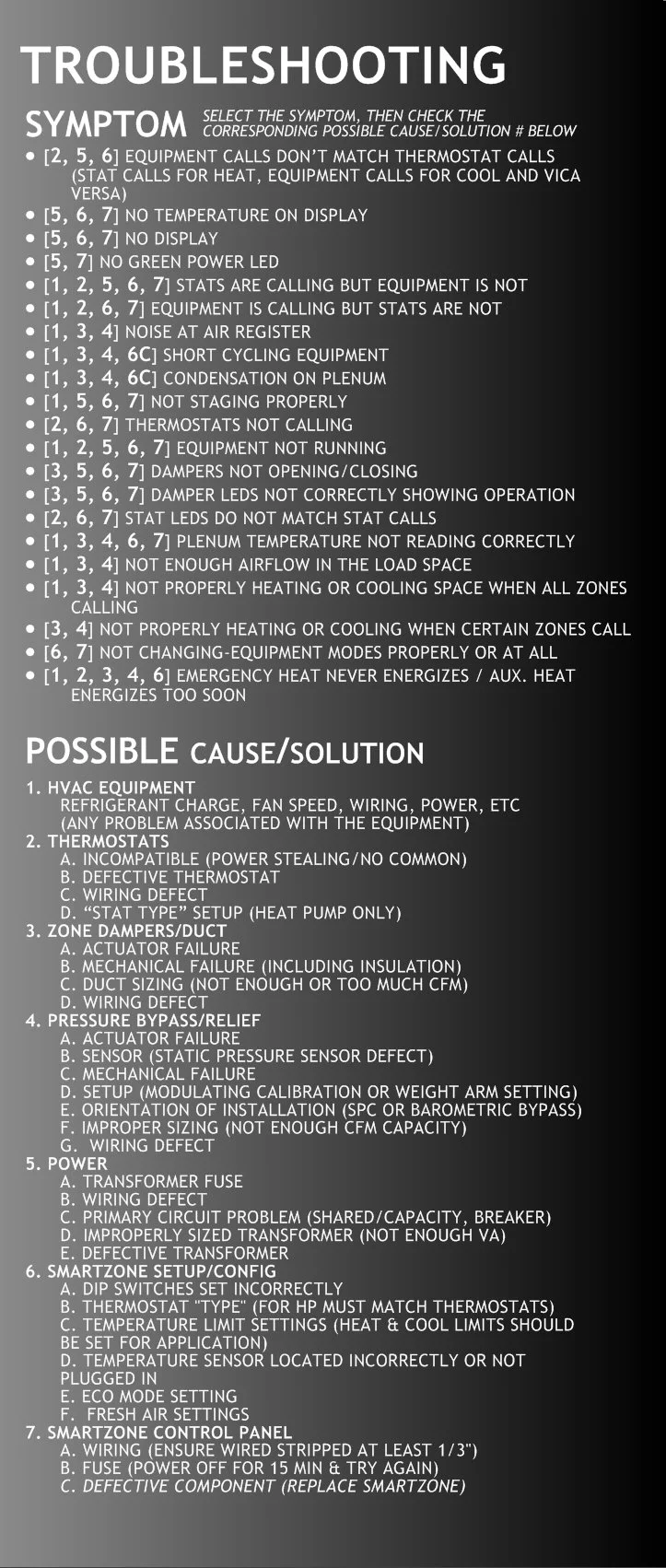

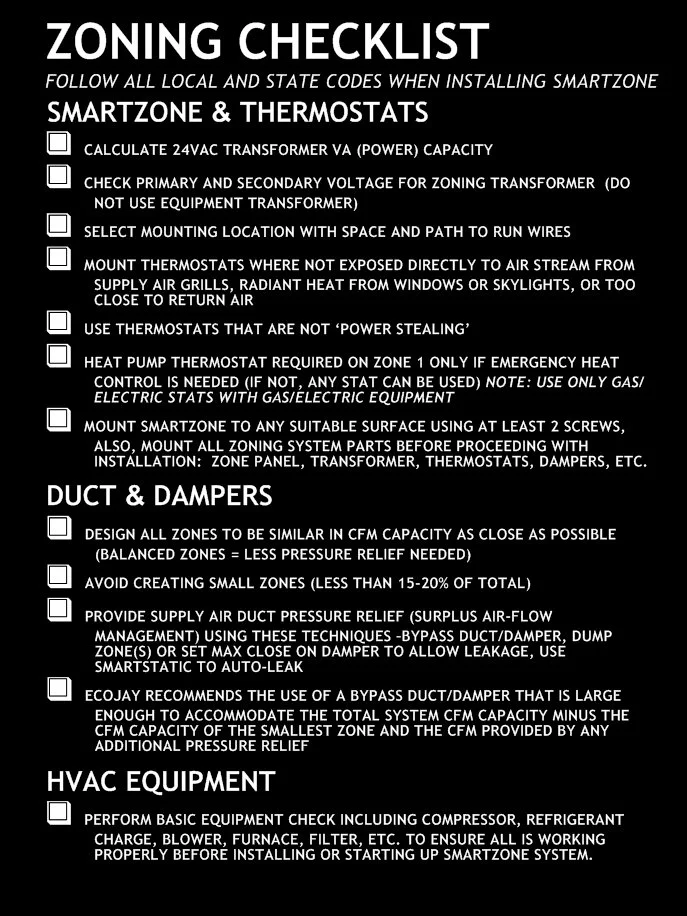

ADVANCED INFORMATION

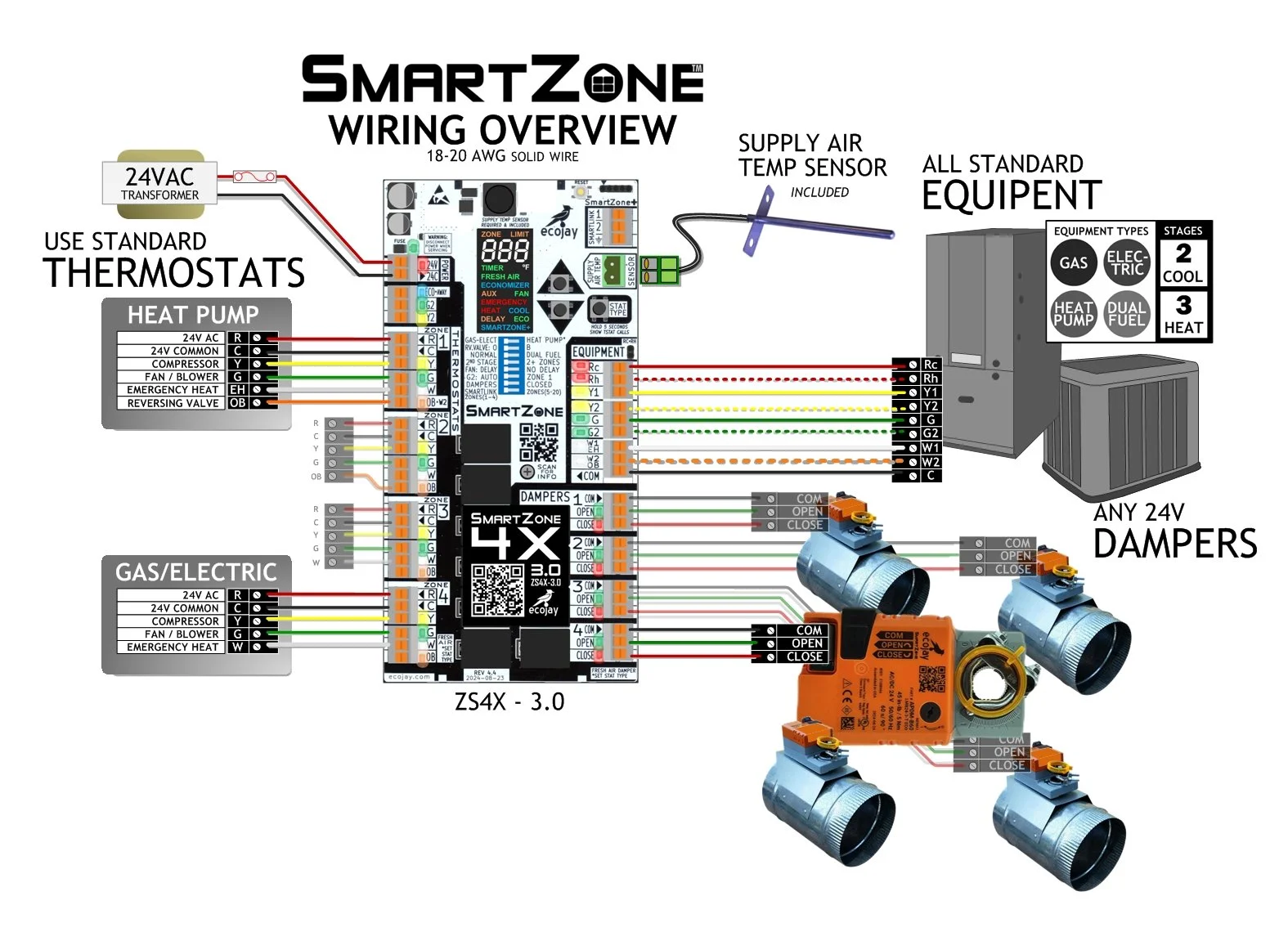

Hands-on video of SmartZone 2.0 wiring and configuration in under 5 minutes. SmartZone 3.0 VIDEO coming soon.

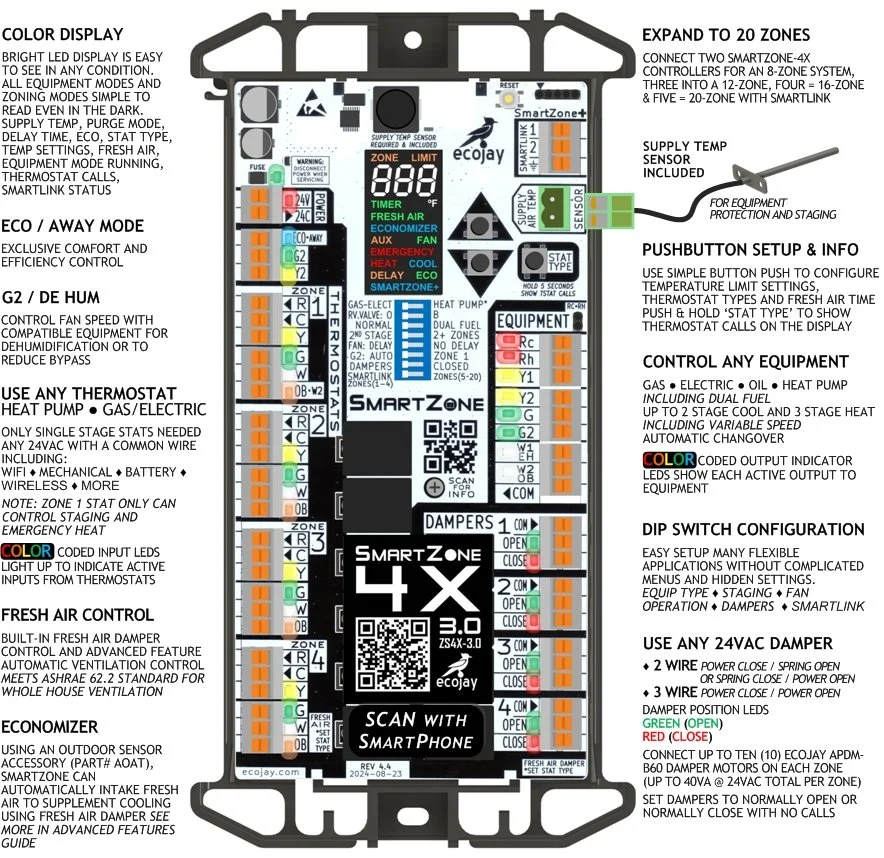

4-Zone Controller
NEW for 2025 - SmartZone better than ever
Replace almost any brand existing zone control ... use with any thermostats (including WiFi).
Control heating and cooling comfort room by room.
EASY INSTALLATION - no screwdriver or voltmeter required
UNIVERSAL COMPATIBILITY - drop in replacement for many models (see list in Additional Info)
BEST FEATURES - built in Fresh Air Control, expansion port up to 20 Zones

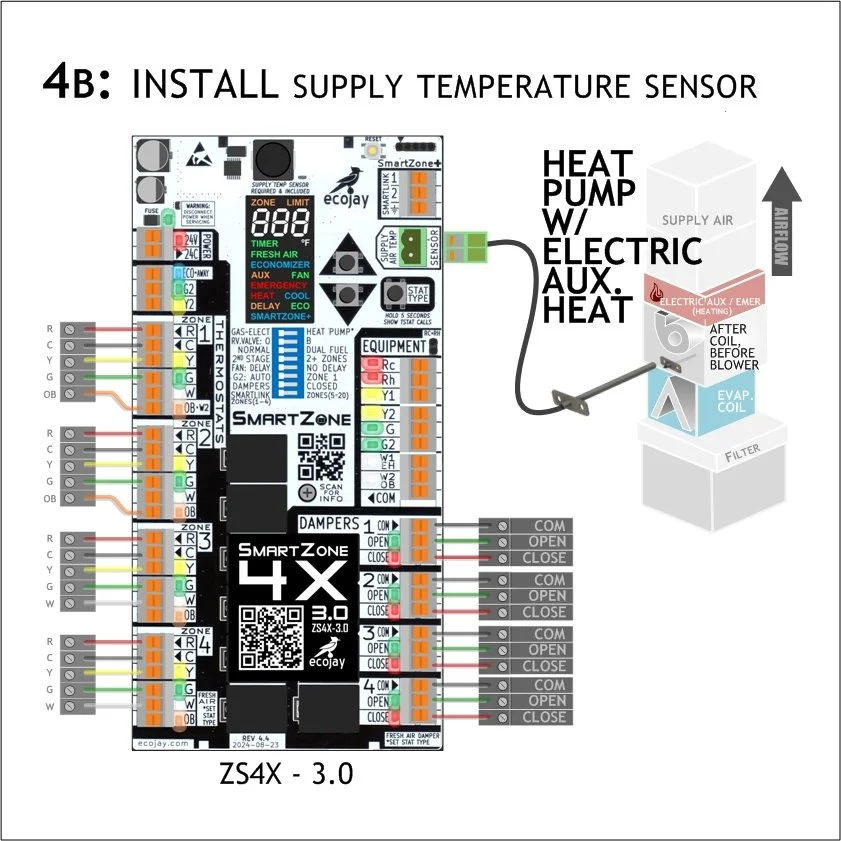

SUPPLY AIR TEMP SENSOR - included for Smart-Staging & equipment protection
DESIGNED & ASSEMBLED IN THE USA
DOWNLOAD SPEC SHEET:
SMARTZONE SPECIFICATION SHEET PDF
