ZoningSupply.com - Zone Control

HVAC Zone Controls & Zoning Dampers

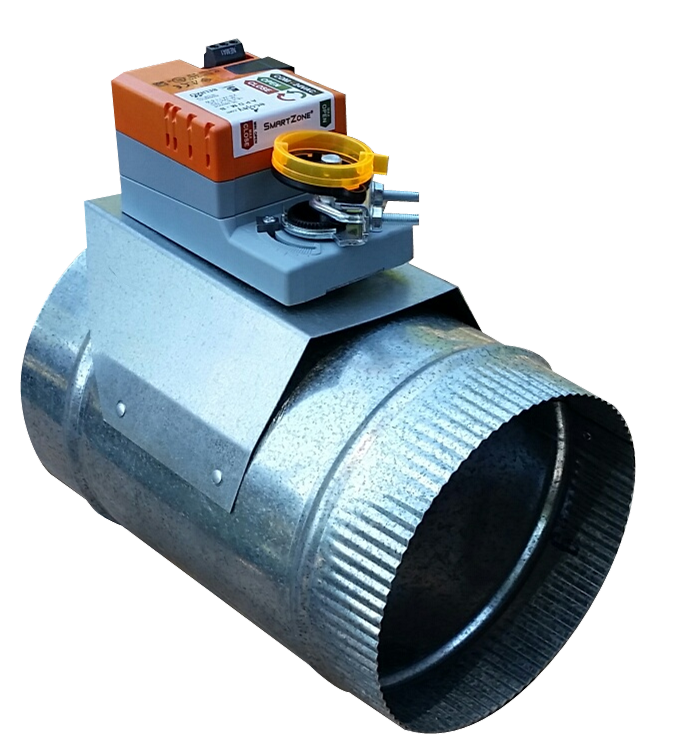

PRO-Grade Power Zone Damper (Round)

from 99.00
SQ power damper ecojay smartzone.jpg
smartzone damper pics round 10.jpg
Smartzone Power Open Dampers wiring.jpg
smartzone damper 16 inch.png
smartzone damper pics motor info 1.jpg
smartzone damper 8 inch side.png
smartzone damper seal 16.png
smartzone damper 6 inch.png
smartzone damper seal.png
smartzone damper sizes.png
SmartZone Power Motor Square LG4.jpg
smartzone damper shaft.png
APP NOTE - belimo damper alternate wiring with switch.jpg

PRO-Grade Power Zone Damper (Round)

from 99.00

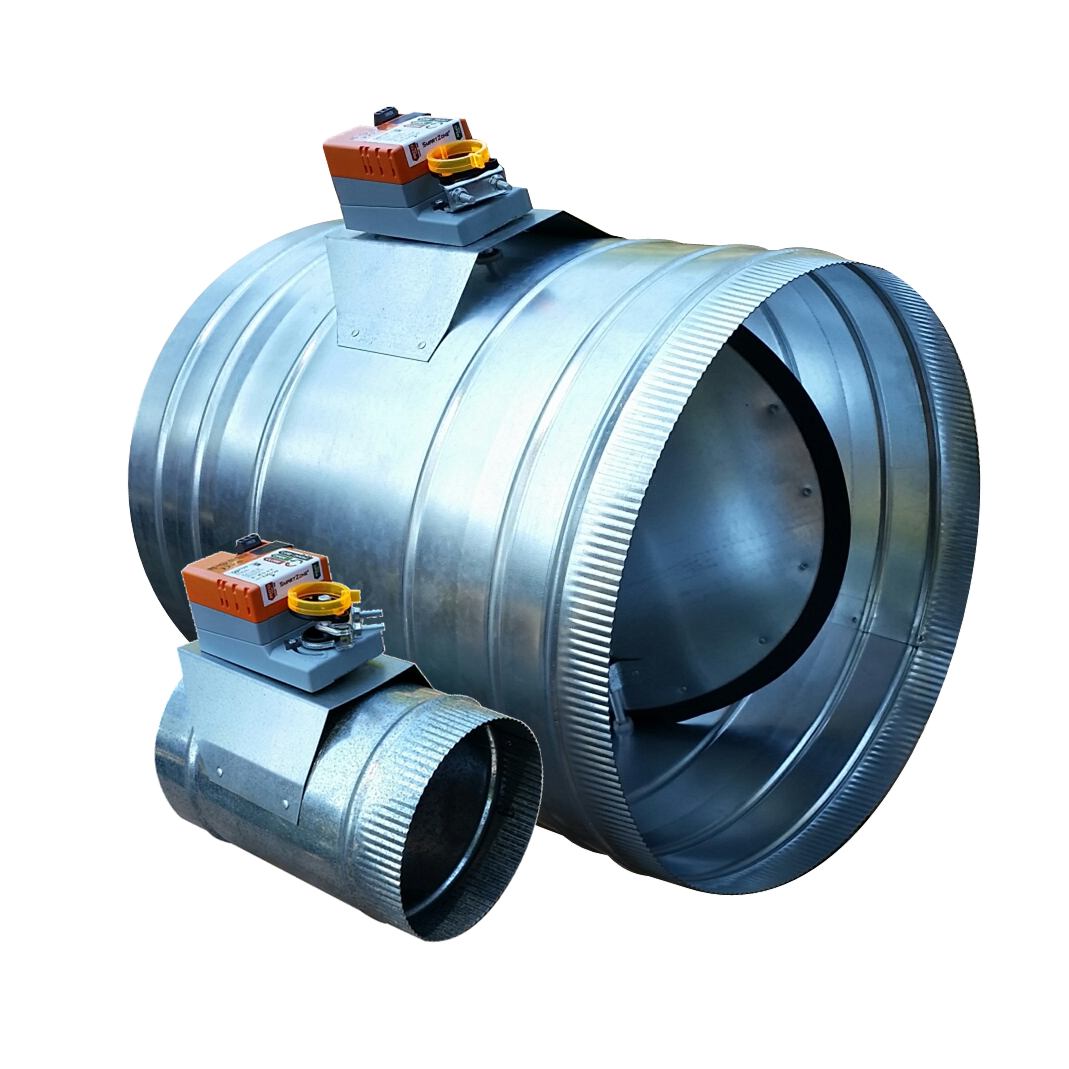

4", 5", 6", 7", 8", 9", 10", 12", 14", 16", 18" Available

FEATURES:
Industry-leading quality & highest reliability, Belimo Motor, Full-seal gasket blade, Super-Heavy Duty, Ribs for easy flex duct attachment, One crimped end for easy solid duct attachment, 5 Year replacement warranty.

NOTE: All dampers subject to a 10% restocking fee.

More Info

Diameter:
Quantity:
Add To Cart

4", 5", 6", 7", 8", 9", 10", 12", 14", 16", 18" Available

FEATURES:
Industry-leading quality & highest reliability, Belimo Motor, Full-seal gasket blade, Super-Heavy Duty, Ribs for easy flex duct attachment, One crimped end for easy solid duct attachment, 5 Year replacement warranty.

NOTE: All dampers subject to a 10% restocking fee.

SUPER-HEAVY DUTY DAMPERS:
ECOJAY SmartZone Dampers are designed and built with precision.  Quiet operation & the highest durability.  If you have ever had a problem with a round damper in the past, the ECOJAY damper will solve it.  Simply the best HVAC Zone damper available.

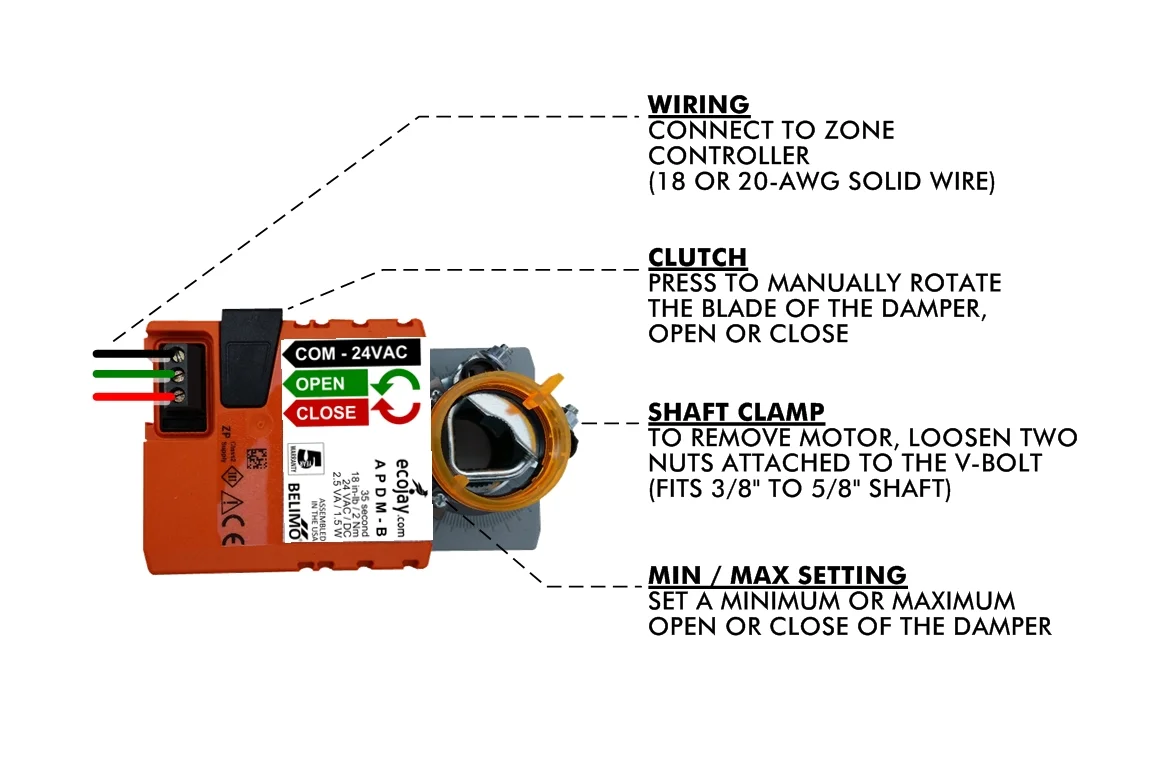

  • POWER open & POWER close (3 Wire)
  • VOLTAGE: 24VAC
  • POWER: 2.5VA MAX
  • RUN TIME: 35 Second (90 Deg)
  • TORQUE: 18 in-lbs
  • Minimum Open and Maximum Close Set-Screws
  • Easy push-button clutch for freely moving blade

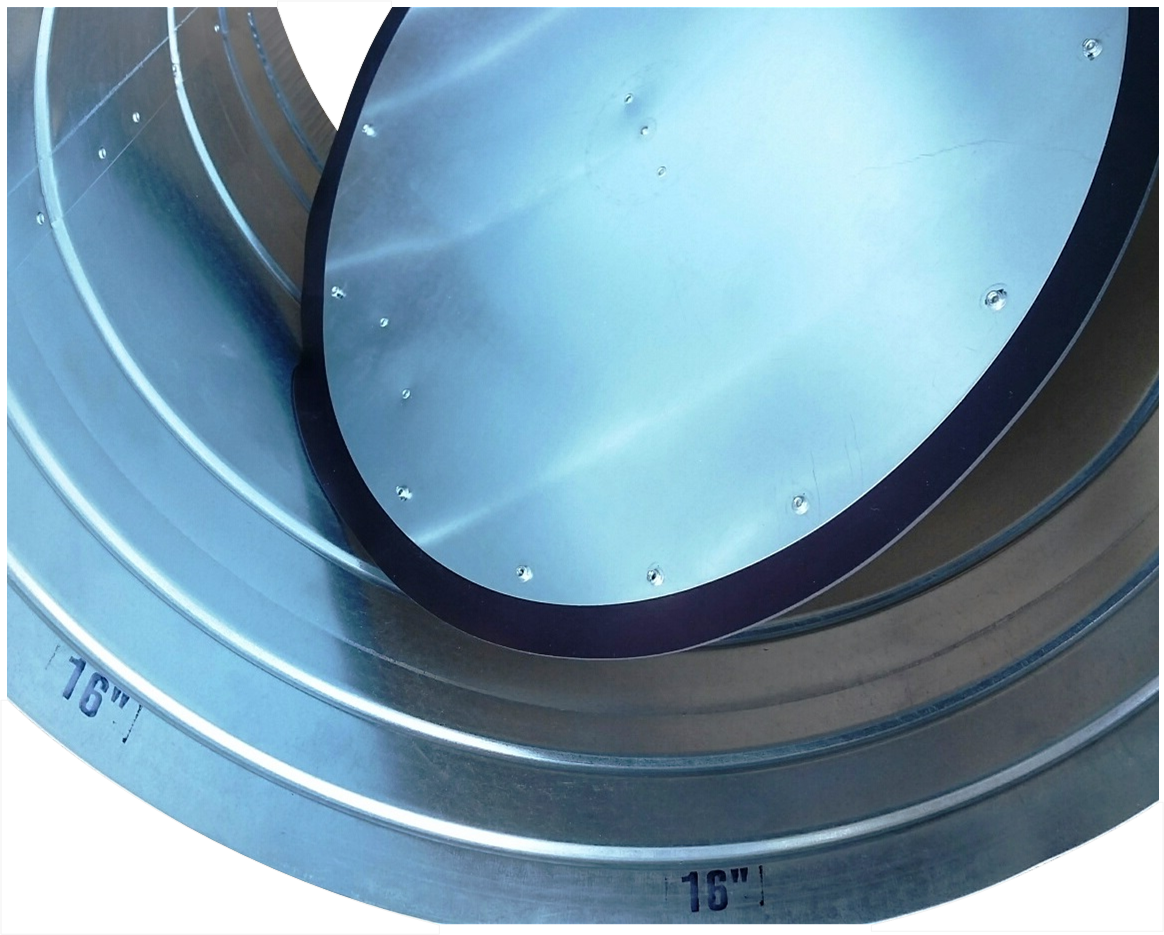

  • Sandwiched poly blade seal for ultra-low leakage
  • BEST Quality and construction
  • MADE IN THE USA
D = 6" to 18"

D = 6" to 18"

Click above for ECOJAY Power Damper Specification (Opens in new window)
