SPECS:
VOLTAGE: 24VAC
POWER: 2VA
90 DEG TURN TIME: 60 Second
TORQUE: 5Nm (45in-lb)

For use with ECOJAY SmartZone and almost any other standard Zone Control system such as Honeywell, EWC, April Air, Zonex, Zone First, Jackson Systems & MANY MORE.

FEATURES:

• MIN & MAX Set position screws

• Clutch to freely rotate motor without power

• U-bolt shaft clamp to fit many size shafts including square & round (3/8" to 5/8")

• Mounting bracket included with screws

• 5 year warranty from Belimo thru ECOJAY

• SUPER High reliability with proven record (MUCH better than spring motors)

• Optional LED indication and screwless terminal adapter (SELECT YES to LED for this option)
  LED adapter sold separately here: https://zoningsupply.com/buy/damper-led-terminal

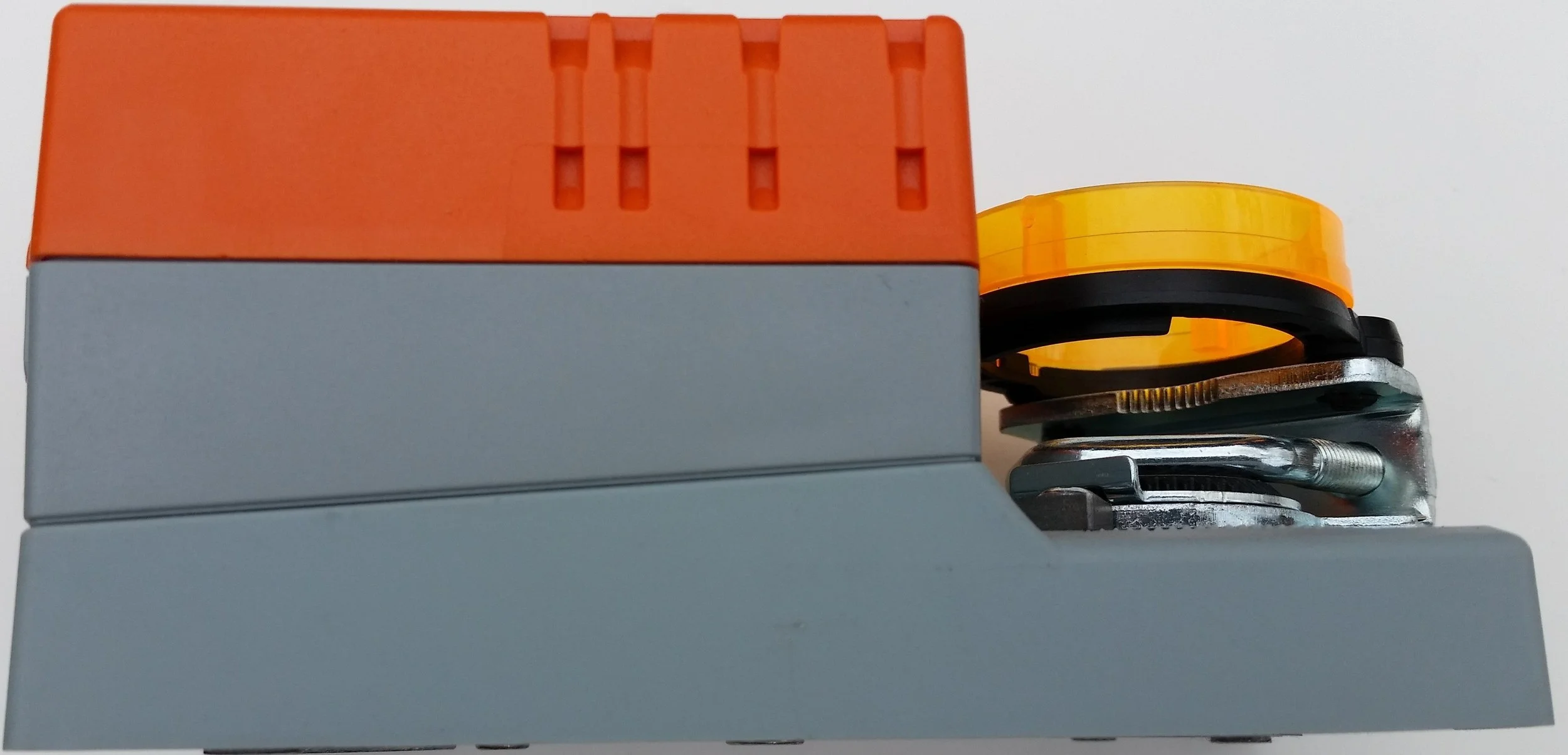

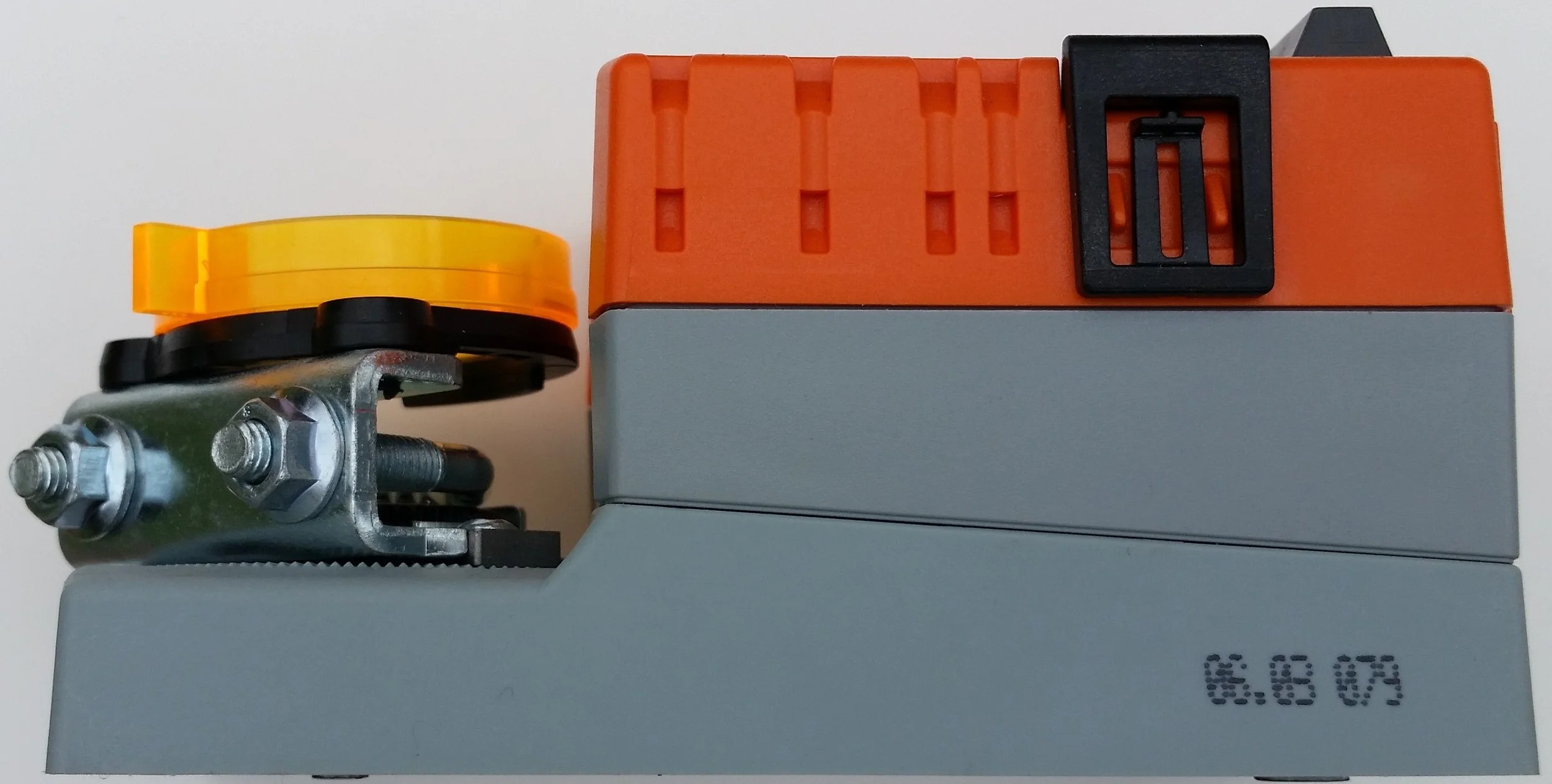

BELIMO PART # LMX24-3-T
