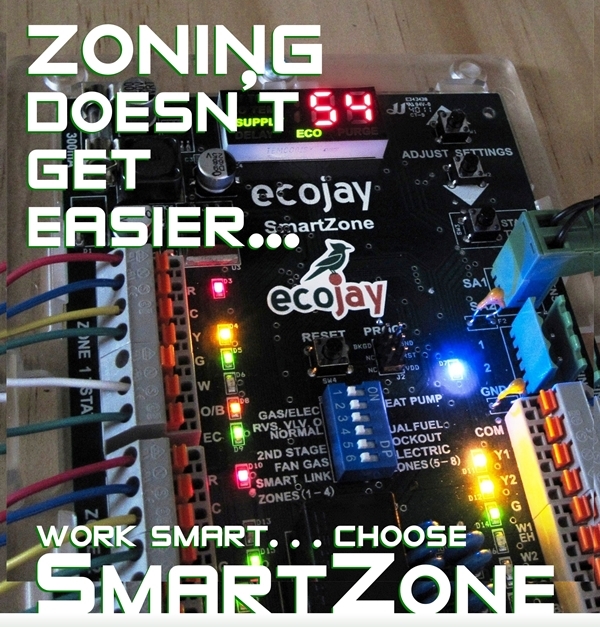

ECOJAY SmartZone residential & light commercial zoning Controllers are easily configurable to satisfy a wide range of application and equipment requirements. Simple installation and setup make smartzone perfect for CHANGE-OUT, RETRO-FIT, NEW-INSTALL and UPGRADES.  brightly-lit LED display shows system mode & status information as well as, temperature readout from included supply sensor.  Color-coded LED's on all wiring connectors simplify troubleshooting by showing all inputs and outputs without using a voltmeter. SmartZone maximizes equipment efficiency & protection with exclusive built-in ‘Time & temp’ staging controls.  Universal compatibility means smartzone works with all equipment types (Heat Pump, Dual Fuel, Gas, Electric, etc), thermostats & 24V dampers.  Time-saving and exclusive features like Fresh-Air, SmartLINK for up to 20 zones & push-in terminals make SmartZone the smart choice.

SmartZone - HVAC Zone Control

smartzone temp sensor

SmartZone Features - reasons to use SmartZone instead of the others

  • Screwless wiring (push-in) – No screwdriver required
  • Color coded leds show inputs and outputs on every terminal – no voltmeter required
  • EASY pushbutton & dip switch setup makes configuration a snap and confirmation of settings in just a glance – NO manual needed
  • Temperature sensor included & supply temp displayed on the bright led display, visible even in the dark – NO flashlight needed
  • MODES SHOWN ON DISPLAY tell you what the board is doing at all times in plain english – NO guessing what codes mean
  • SmartZone can be used with any equipment – Heat Pump, Gas, Electric, radiant, geothermal, etc. as long as it is controlled by 24v.
  • Single-stage & Multi-Stage equipment can be used (3 heat & 2 cooling stages)
  • Heat pump equipment can be used with auxiliary & emergency heat – both electric and dual fuel -  flawlessly with SmartZone (requires heat pump thermostat connected to Zone 1)
  • SmartZone can be paired with any thermostat from the most expensive WiFi stat to the cheapest mechanical thermostat.
  • Any 24v damper (Spring or power) can be controlled by SmartZone
  • Smartzone has exclusive advanced features:
    •     - Economy Mode allows setback of all zones with the     flip of a switch.  When in eco mode, the system will only     energize if zone 1 makes a call.  This feature is great for vacations or if some of the zones are rarely used.
    •     - Fresh air control allows control of an outside air damper and the system fan on a schedule to bring in fresh air in a prescribed amount.  If fresh air control is required, smartzone-4x has it covered with no additional controls required.  Save $
    • - Smartlink: expand to 20 zones by simply connecting multiple 4X boards together with the smartlink bus. Easiest & most cost effective system for more than 5 zones!
  • Smart staging & limit protection – by using a sophisticated time and temperature algorithm perfected over decades of programming, smartzone stages up and down in the most effective and efficient manner possible.
  • 2nd stage lockout – by setting this dip switch, smartzone will only allow 2nd stage if more than one zone is calling
  • Stage from zone 1 thermostat – allows for a multi-stage thermostat to be connected to zone 1 and control zoning instead of SmartZone (not recommended in typical circumstances)
SmartZone-4X
199.00 299.00

Universal 4-Zone Controller

BEST ZONE CONTROL AVAILABLE!
Replace almost any brand existing zone control ... use with any thermostats (even WiFi like nest and ecobee).

Control heating and cooling comfort room by room.

  • EASY INSTALLATION - no screwdriver or voltmeter required
  • UNIVERSAL COMPATIBILITY - drop in replacement for many models (see list in Additional Info)
  • BEST FEATURES - built in Fresh Air Control, expansion port up to 20 Zones
  • SUPPLY AIR TEMP SENSOR - included for Smart-Staging & equipment protection
  • DESIGNED & ASSEMBLED IN THE USA
